Automatic Weather Station AWS

An automatic weather station (AWS) is an automated version of the traditional weather station, either to save human labour or to enable measurements from remote areas.

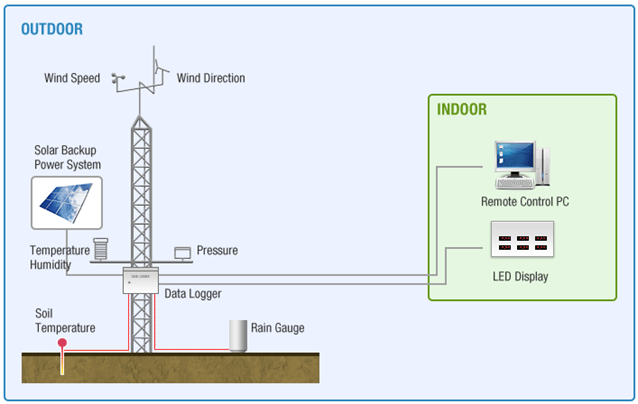

An AWS will typically consist of a weather-proof enclosure containing the data logger, rechargeable battery, telemetry (optional) and the meteorological sensors with an attached solar panel or wind turbine and mounted upon a mast.

The specific configuration may vary due to the purpose of the system.

The system may report in near real time via the Argos System and the Global Telecommunications System, or save the data for later recovery.

In the past, automatic weather stations were often placed where electricity and communication lines were available.

Nowadays, the solar panel, wind turbine and mobile phone technology have made it possible to have wireless stations that are not connected to the electrical grid or hardline telecommunications network

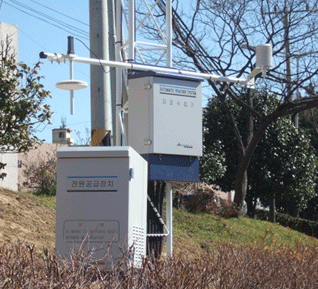

AWS가 설치된 현장으로 기상타워와 풍향풍속계, 온습도계, 기압계, 강우량계, 데이터로거와 전원공급장치와 같은 함체로 시스템화되어 운영된다.

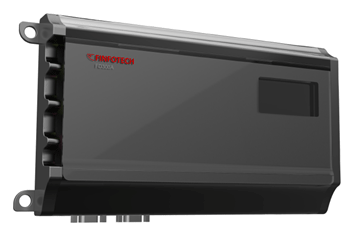

DAQ STATION FD300A
데이터로거

O Processor

  - Lower Power 700Mhz ARM11, 32bit RISC

  - Main memory 512MB SDRAM

O OS

  - Arch Linux ARM, RISC OS

O Data memory

  - Basic 16GB (SD/Flash 32GB Extensible)

  - SD Card 4GB(Data Backup)

  - External HDD Mounting possible



O Software

  - Open MySQL DB

  - C++, JAVA Etc.

  - Web Server Build

  - Network Control

  - User Interface Support

  - Real Time on the Web & Mobile Logger Operating / System Monitoring

O Port

  - Analog Input 16(Differential channel 8 includes)

  - Digital GPIO 8pin(I2C 4)Support

  - Frequency channel 2 More

  - LAN 1개(RJ45)

  - RS232/422/485  1 More

  - USB 2(Camera/HDD/LAN/RS232 Hub Extension)

O Input/output

  - 128*64 Graphics LCD (Backlight include)

  - 2*4 Key Pad

  - USB Port Use Keyboard & Monitor connect possible

  - HDMI, I2C, SPI, Camera CSI Use

O A/D Bit

  - 16 bit

O Voltage

  - DC 9~24V

O Operating environment

  - -45 ~ +80 degree C

O Etc.

  - Data Security Encryption method Applicable(AES)

  - IOT(Internet of Things) System Possible

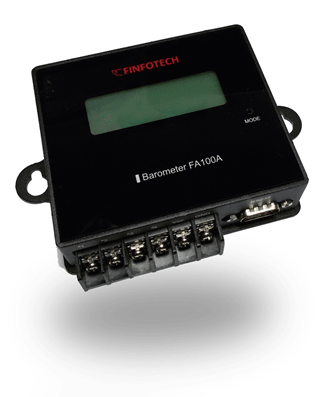

Finfotech Digital Barometer FA100 is a new generation barometer, designed for a wide range of high-end atmospheric pressure measurement. The FA100 measures barometric pressure for the range of 500 to 1100 mb. Designed for use in environmental applications, the FA100 is compatible with Finfotech dataloggers.

Specification

 - Measurement range       500 ~ 1100hPa

 - Accuracy                          ± 0.2 hPa, 25℃, ± 0.5 hpa, 40℃

 - Long-term stabilit           ± 0.1 hPa / year

 - Response time                500ms

 - Linearity                           ±0.25 hPa

 - Operating Temperature  -40 ~ +60 ℃

 - Operating Power             10 ~ 30V DC

 - Output Type                      RS232, RS422,  RS485

Barometer   FA100A
기압계

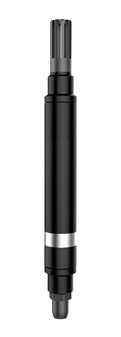

Humidity and Temperature Probe FTH100A
온/습도계(디지털)

Specification



Temperature measurement



 - Measurement range : -40 ~70℃

 - Accuracy at +20℃   : ±0.15℃

 - Temperature sensor : Pintype C-mos sensor

Relative Humidity measurement

 - Measurement range : 0 ~100 % RH

 - Accuracy at

 - +15… +25℃           : ±1%RH(0…90% RH), ±1.5%

 - Humidity sensor : Pintype C-mos sensor

 - Cable length : 6Wire

Operating environment

 - Temperatute

    - operating : -40....+60℃(-112….+140℉)

    - storage     : -40....+60℃(-112….+140℉)

 - Output         : Digital

 - Operating Voltage : 5V DC

 - Connecting cables : 3.5 , 5, 10 and 30m

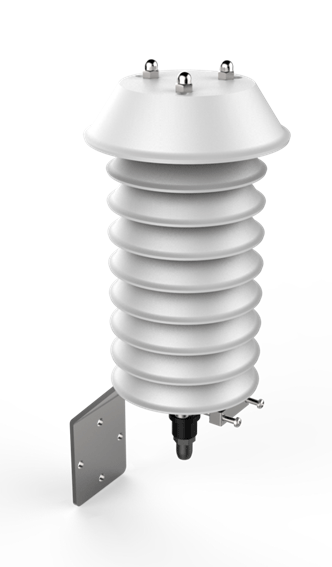

Solar Radiation Shield  FS200

The Finfotech Radiation Shield FS200 are solar radiation and precipitation shields supporting humidity probe installations in outdoor applications.

∙ Protects temperature and humidity probes from scattered, as well as, direct solar radiation and rain.

Specification



 - Forced circulation Type

 - Ventilation speed : 4~6m/s

 - RPM Detection

 - Waterproof Type

 - Weight : 1.0Kg

 - Length : 200mm

차광통(간이백엽상)

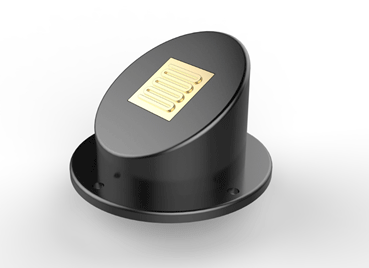

Rain Detector FRD100A
강우감지기

Finfotech FRD100A sensor is designed to detect dew, rain and precipitation in the atmosphere making use of the principle of activating the electronic circuit of the sensor when moisture drops on the sensor from the upper air. FRD100A sensor is of high accuracy and durability and made so as not to be interrupted by fog or mist with help of built-in heater.

Specification



 - Measurement  Type   Grid Impedance

 - Sensibility                    0.05 ㎠

 - Sensing Area               9 ㎠

 - Sensing side                Gold Grid (3㎛)

 - Sensing Angle             30°

 - Output Type                Point(on/off relay)

 - Operating Power        9~15VDC

 - Operating Temperature  -50 ~ 50 ℃

 - Heater                          Automatic

 - Size                               20mmx 30mm x 70Φ

 - Weight                         600g


Bucket Rain Gauge FAR-1000

This instrument uses a tipping-bucket mechanism to produce a contact closure every time it receives a predetermined small quantity of rainfall

Specification



 - Measurement  Type     Tipping bucket

 - Measurement range    Unlimited

 - Resolution                     0.5mm

 - Accuracy                       ±3%

 - Output Tyoe                 RS232/SPI/TWI(I2C) Digital

 - Diameter of aperture   225mm

 - Heater(1℃)                   Option

 - Size                                230 ×460mm

 - Weight                          3Kg

 - Operating Temperature   -40 ~ 70℃

 - Operating Power              220V AC

 - Processor internal RTC, EEP ROM

강우량계(디지털출력)

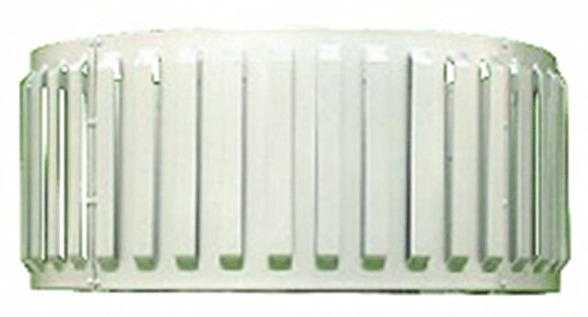

Windshield FW100
방풍망

Windshield

 - Alter Type

 - Form : Circle

 - Diameter : 40Cm

 - Height : 7.5Cm

 - Shield Quantity : 32

 - Size : 120×60Cm
